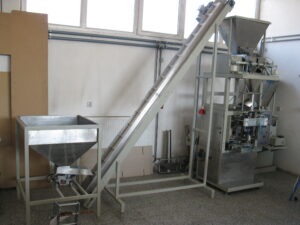

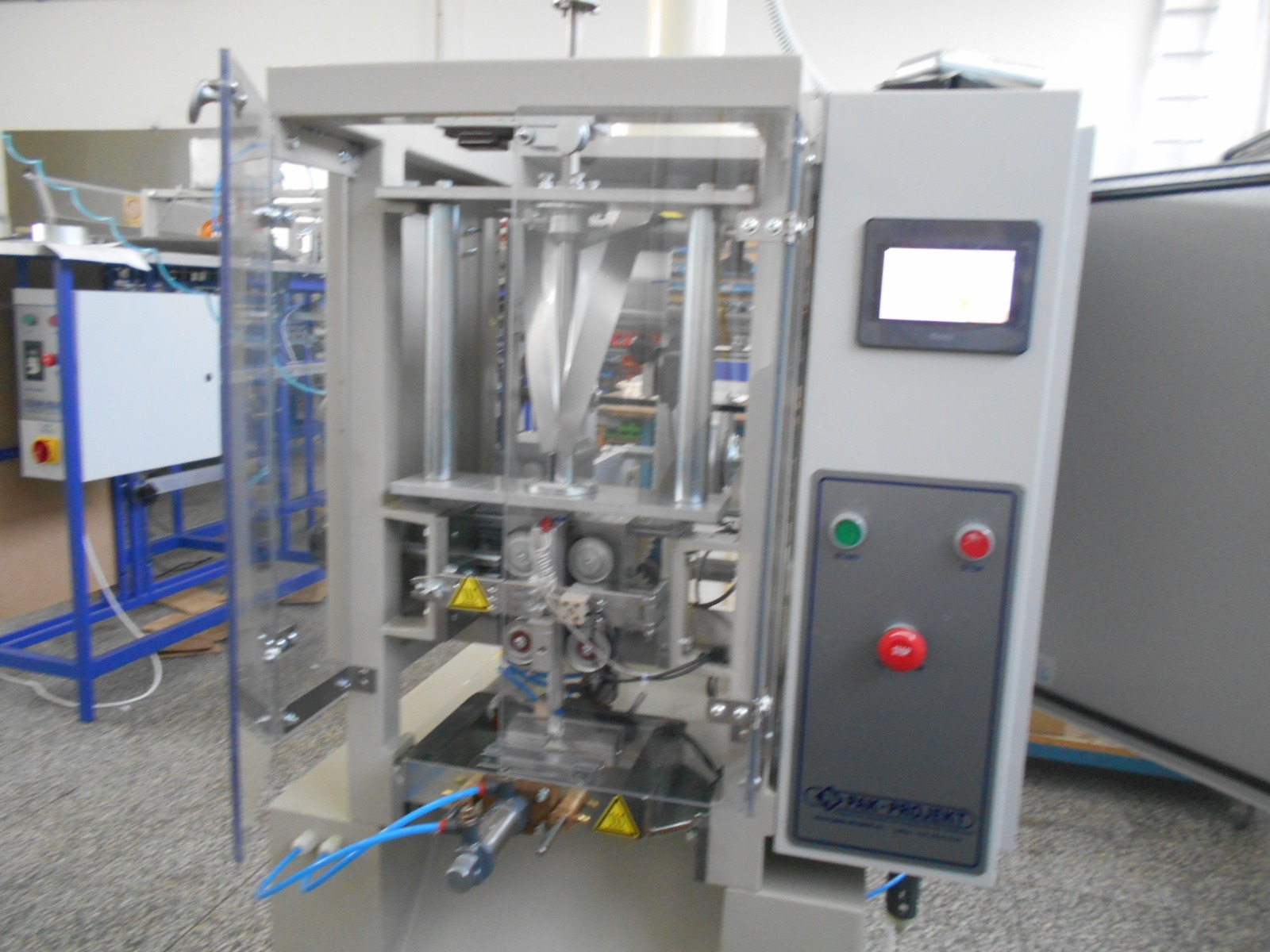

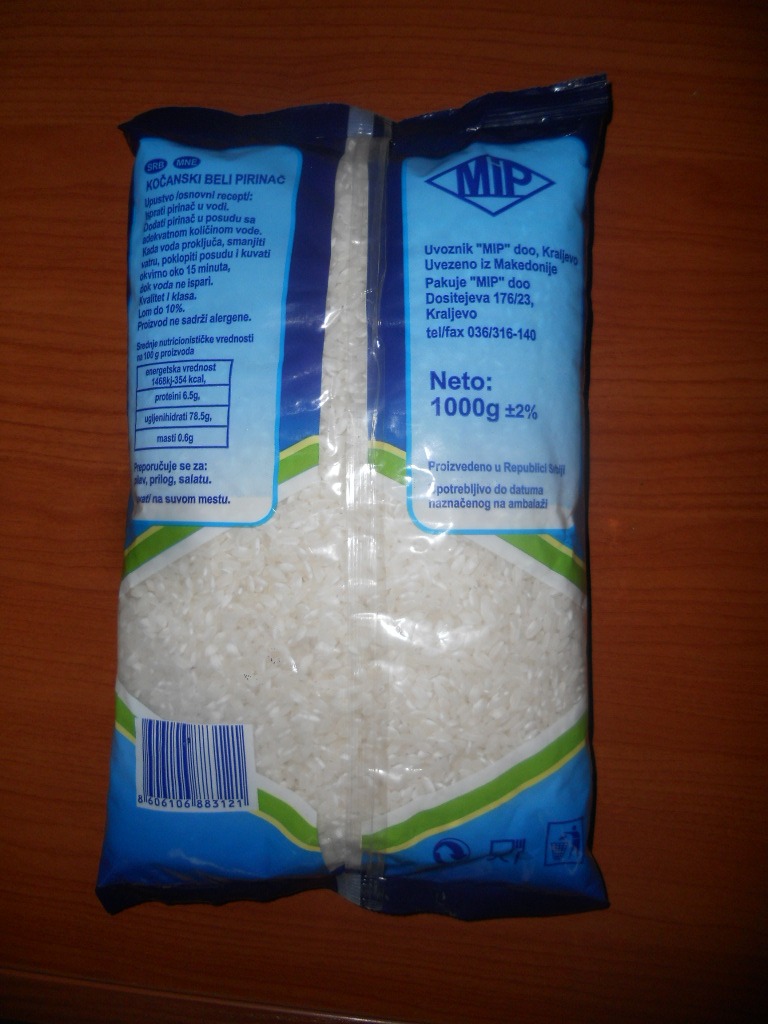

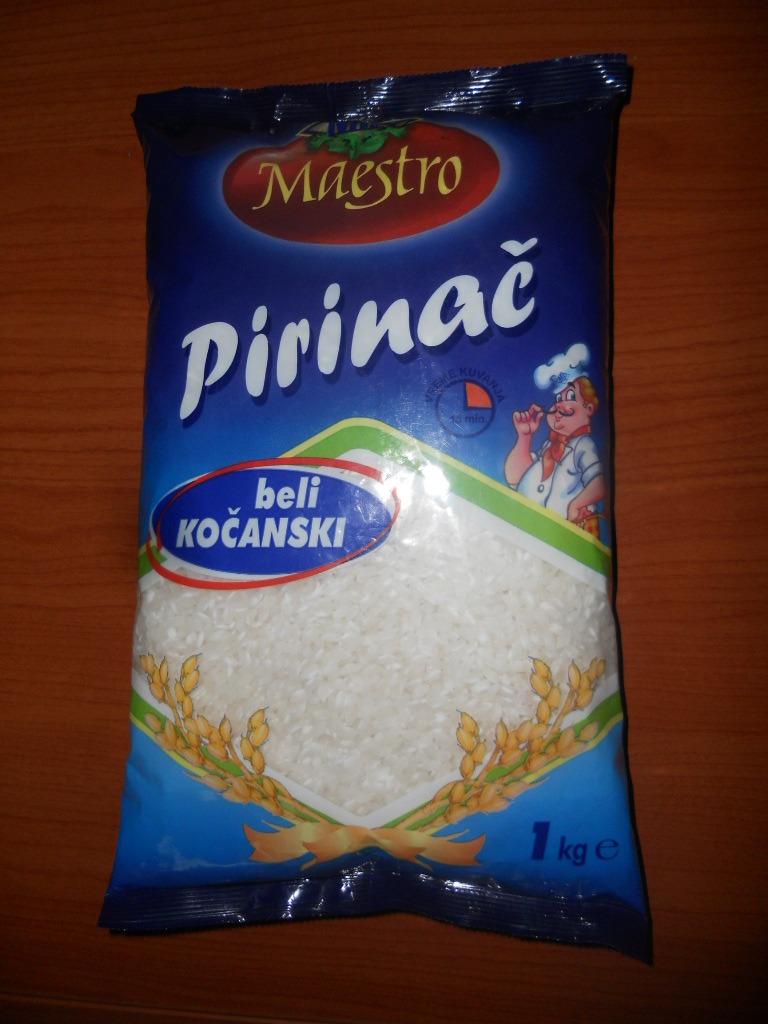

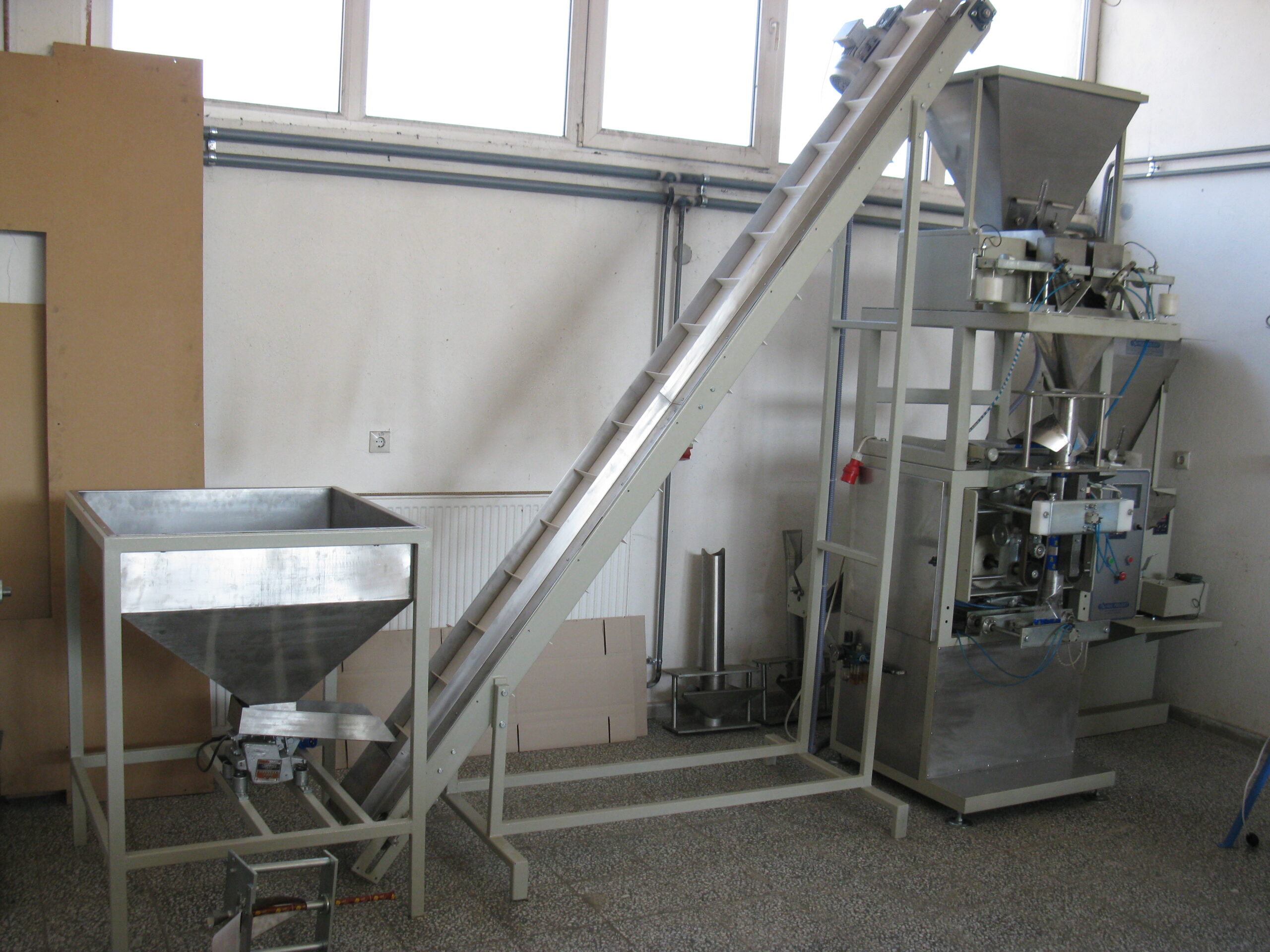

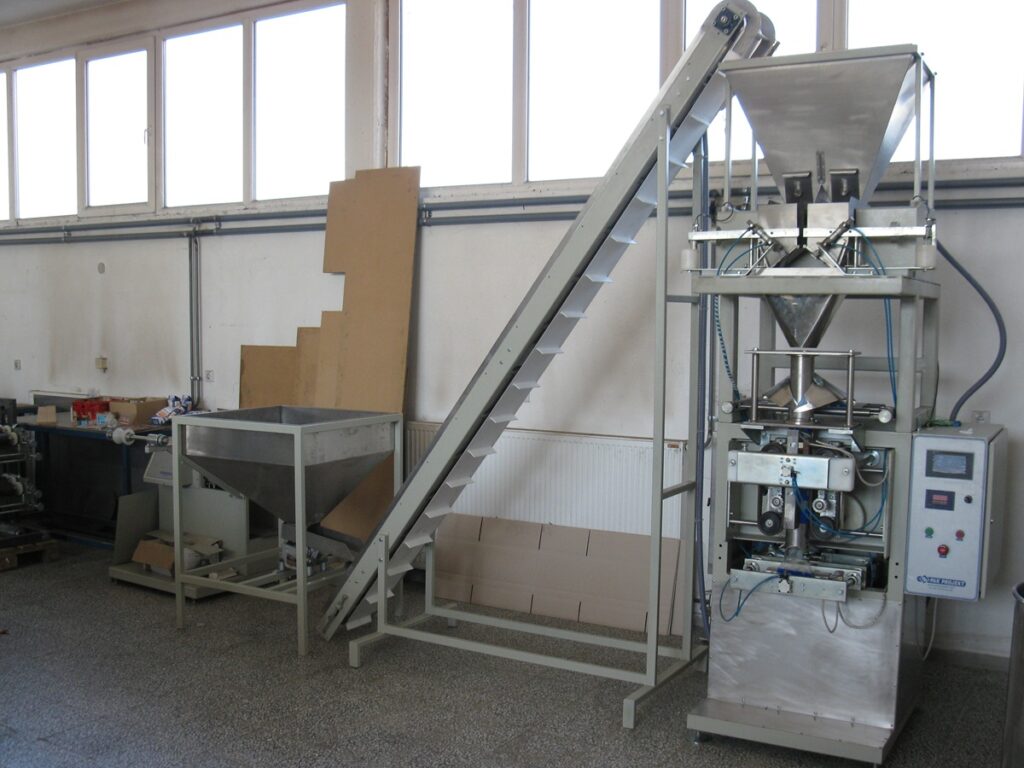

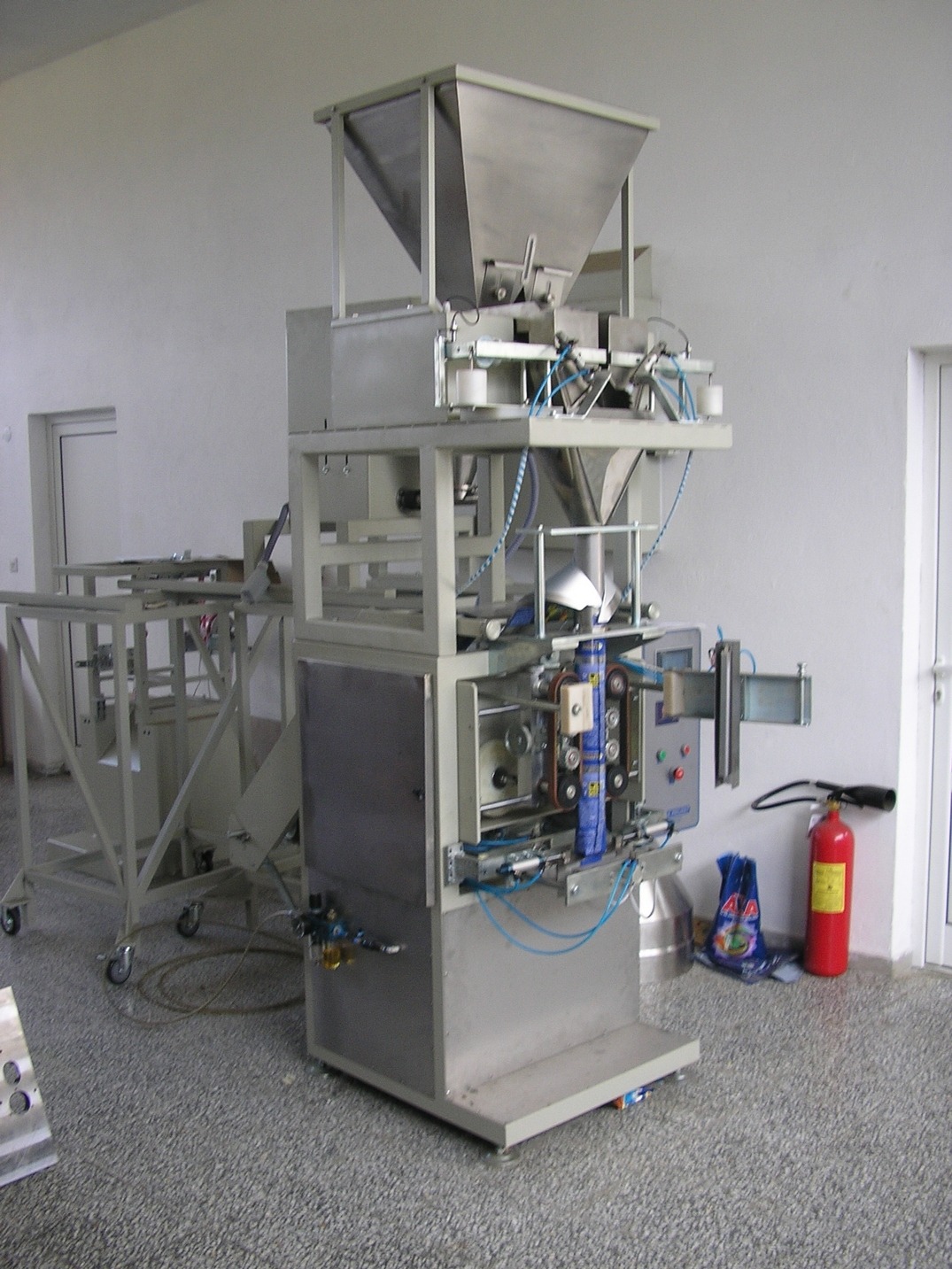

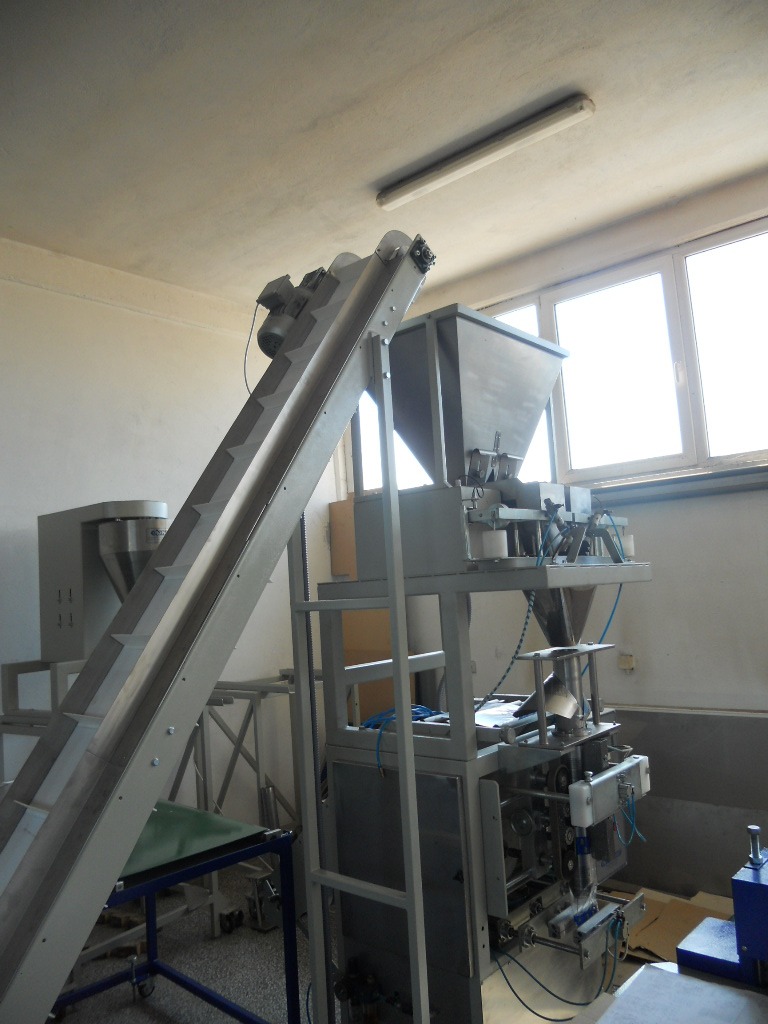

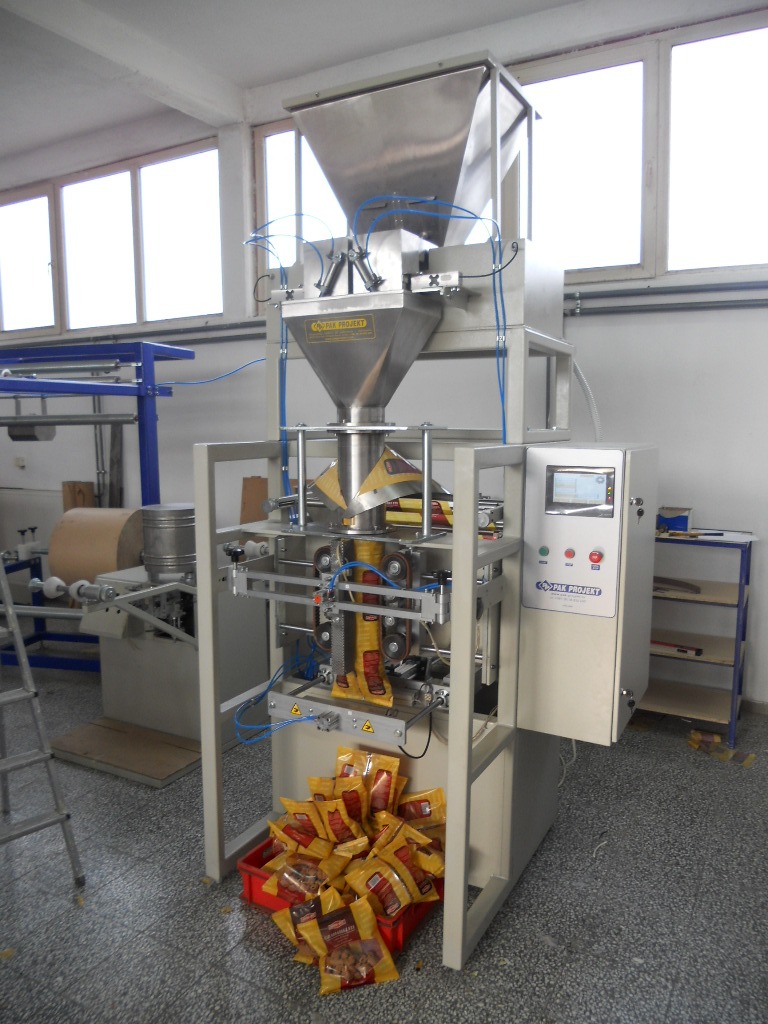

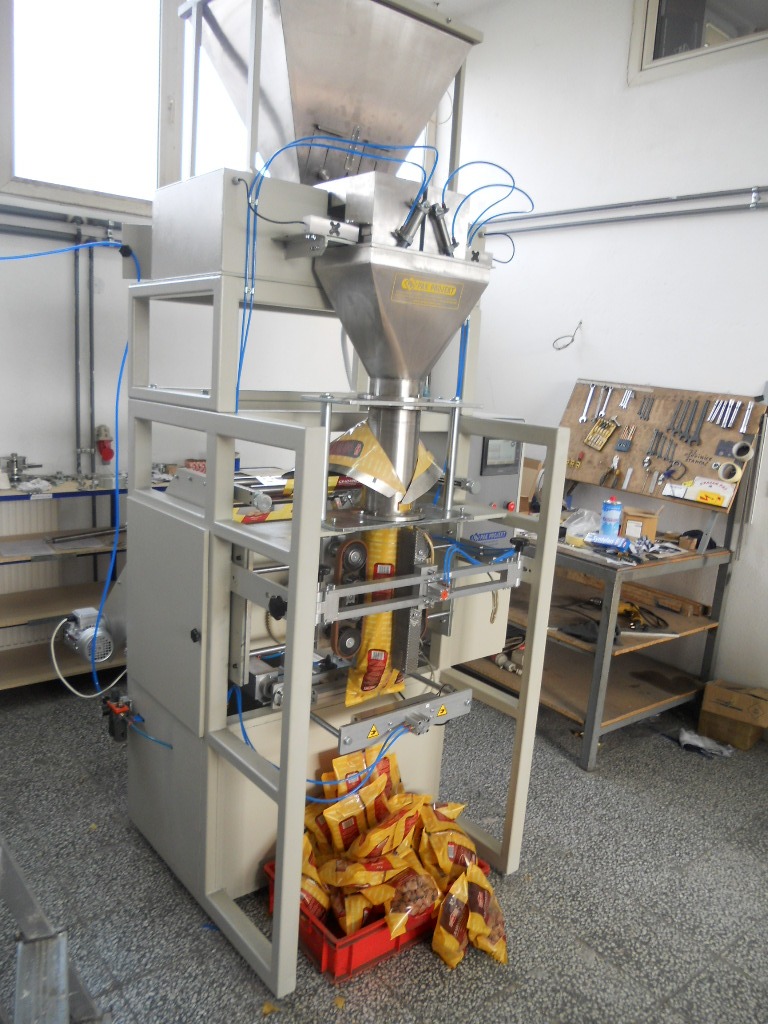

Machines for packing granular products
The machine works in automatic mode and is used for packing granular products (rice, beans, peanuts, etc.). The machine performs the pulling, bag forming, welding, dosing and cutting operations. After that you get the packaged product.
Technical characteristics:
- type of foil: all types, except PE
- capacity: 20-30 bags/min.
- bag size: according to the customer's request
- shape of the bag: according to the customer's request
- voltage: 3x380 V
- installed power: ≈2 KW
- air pressure: 6 bar
- method of pulling the foil: with belts
- - dosing: with two vibro-dosers
- - measurement: electronic scales

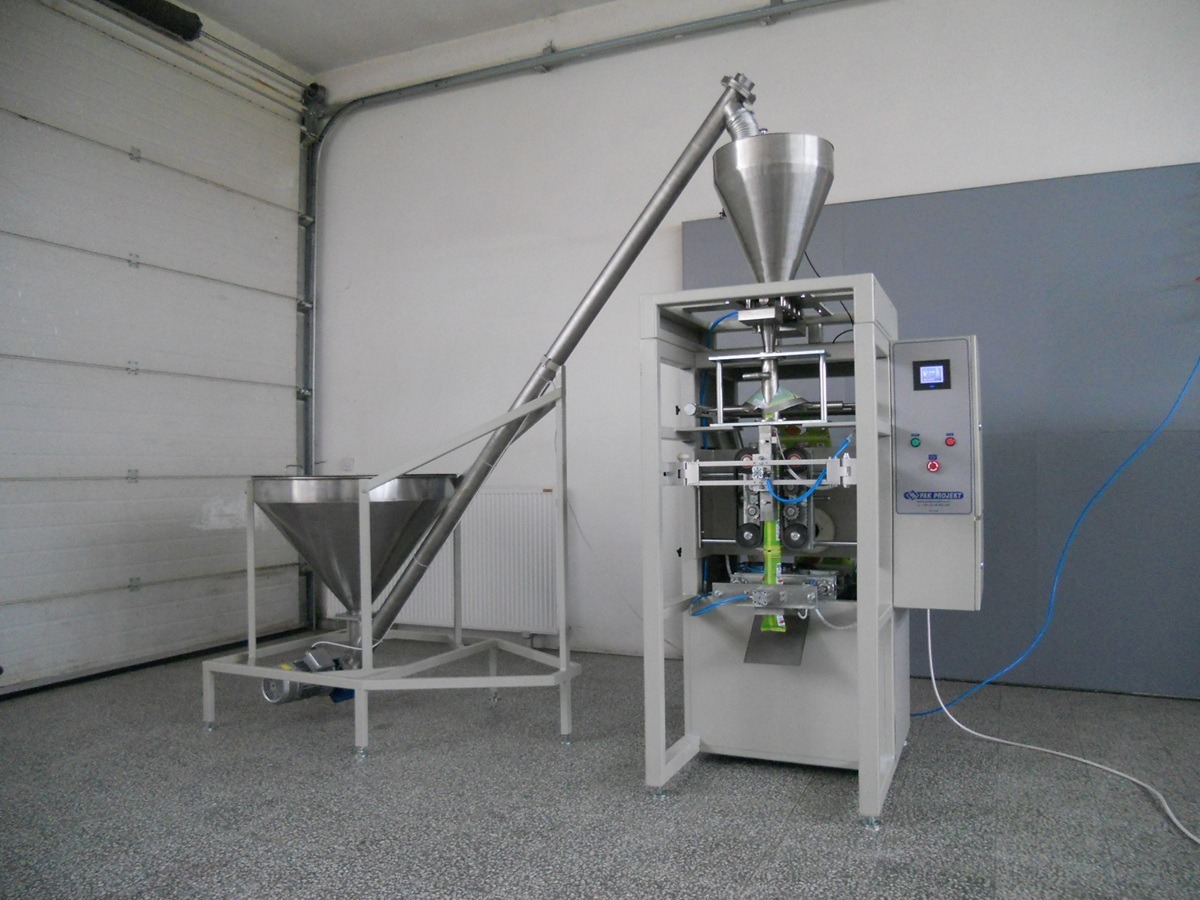

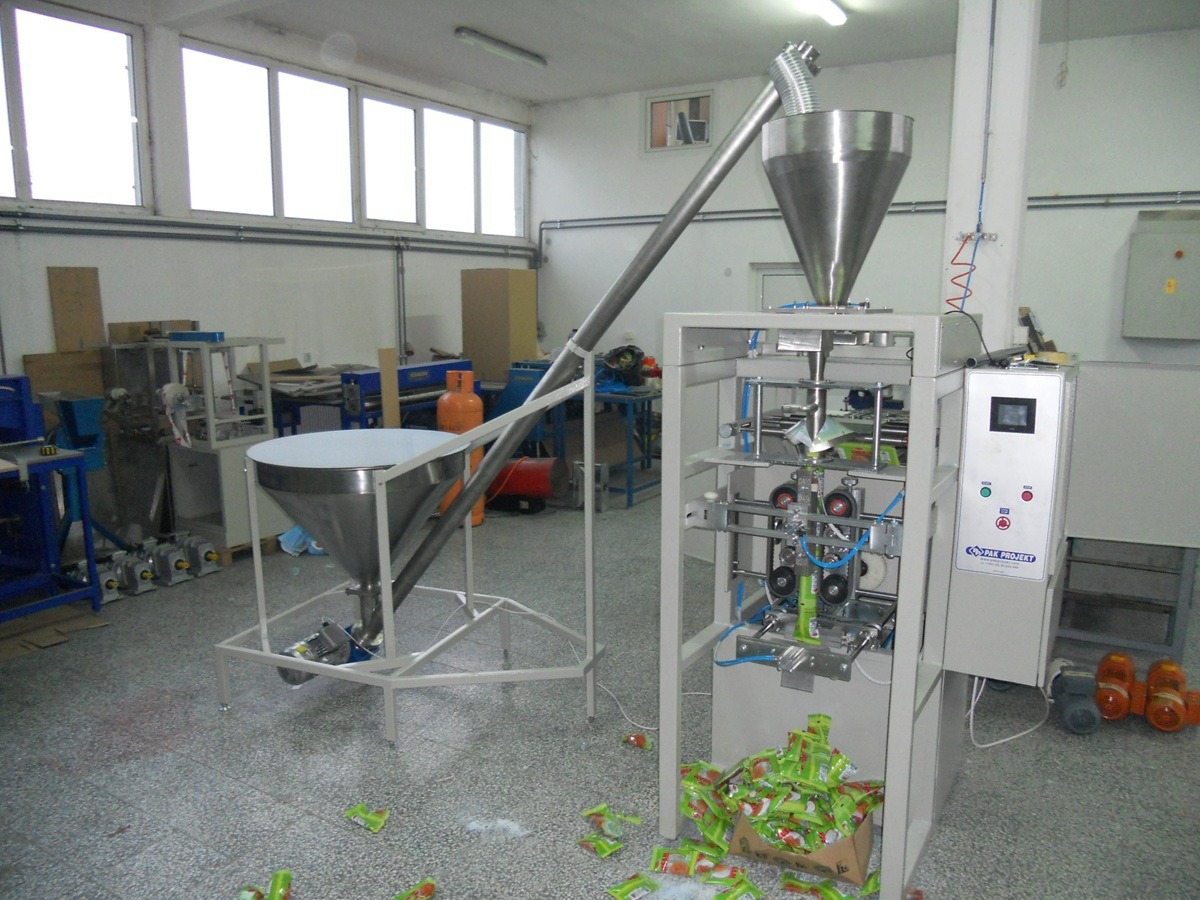

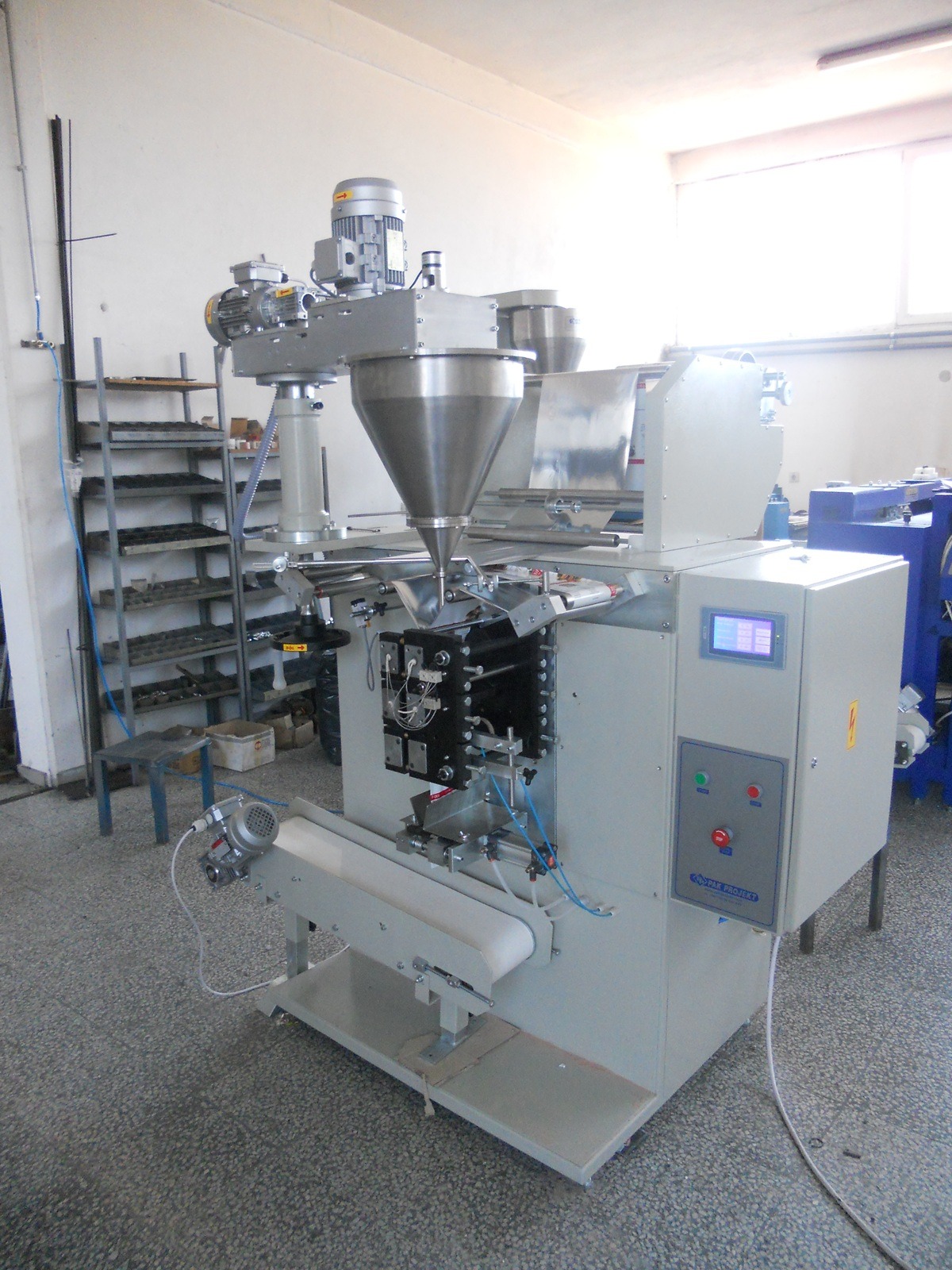

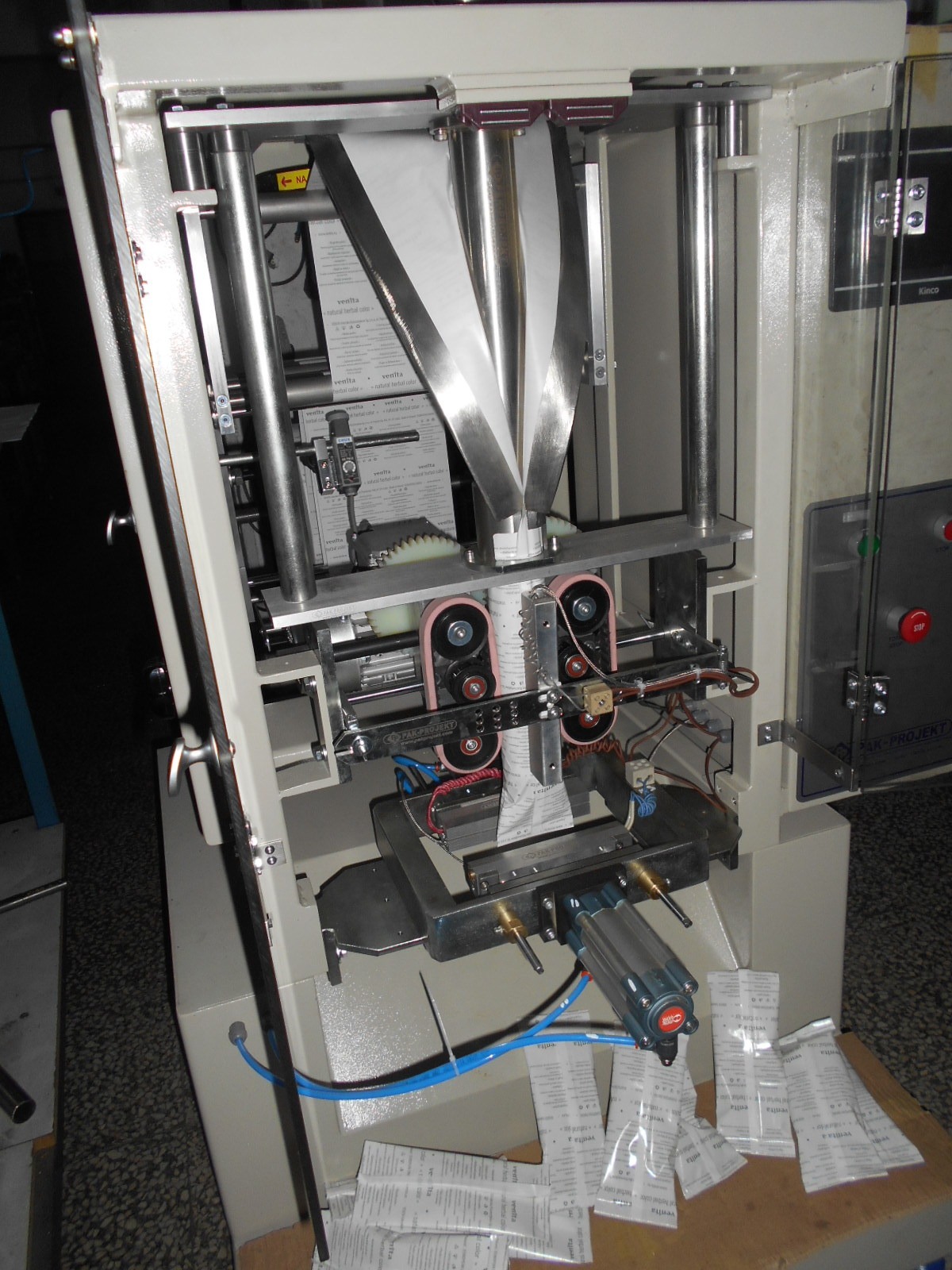

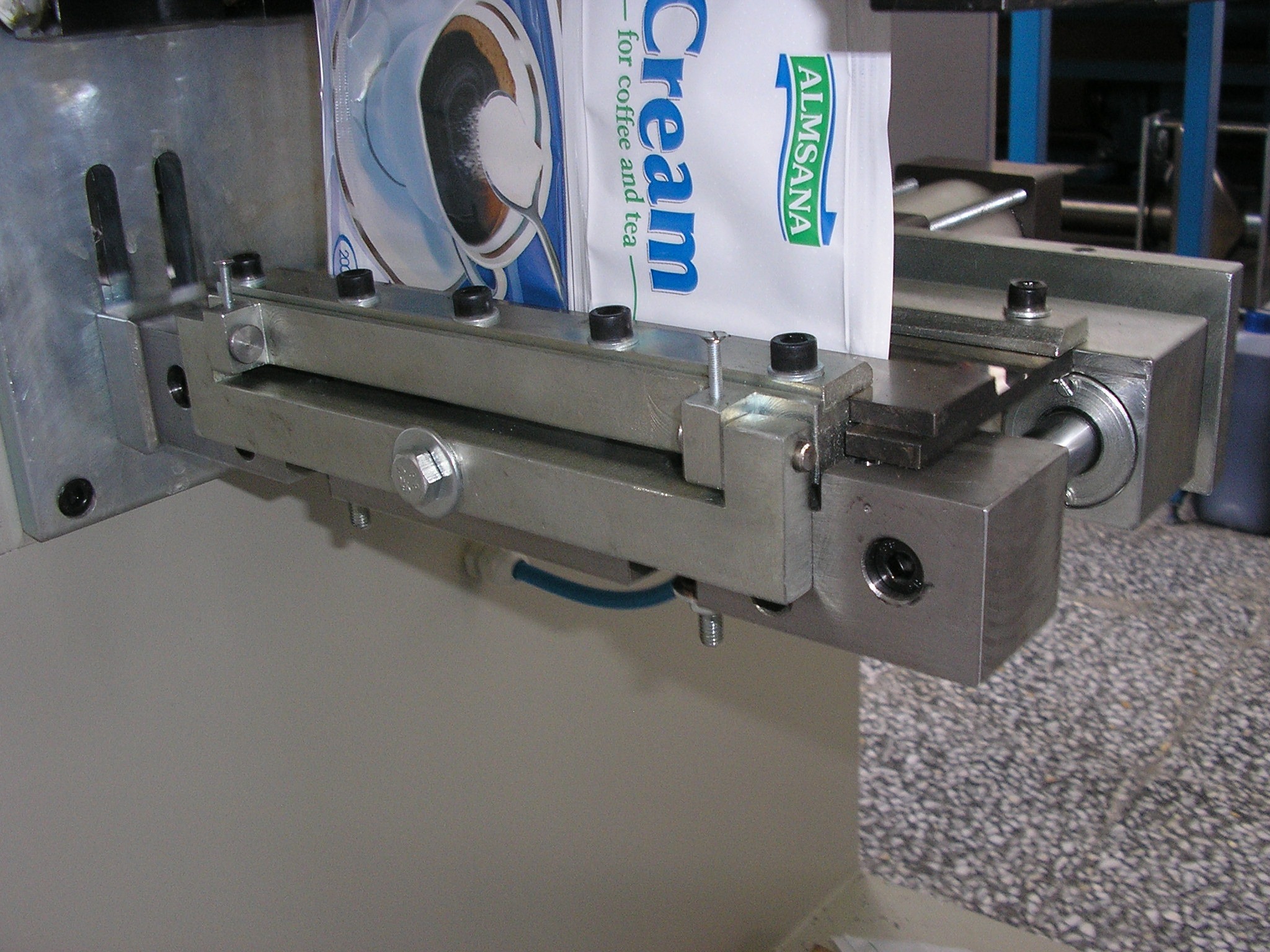

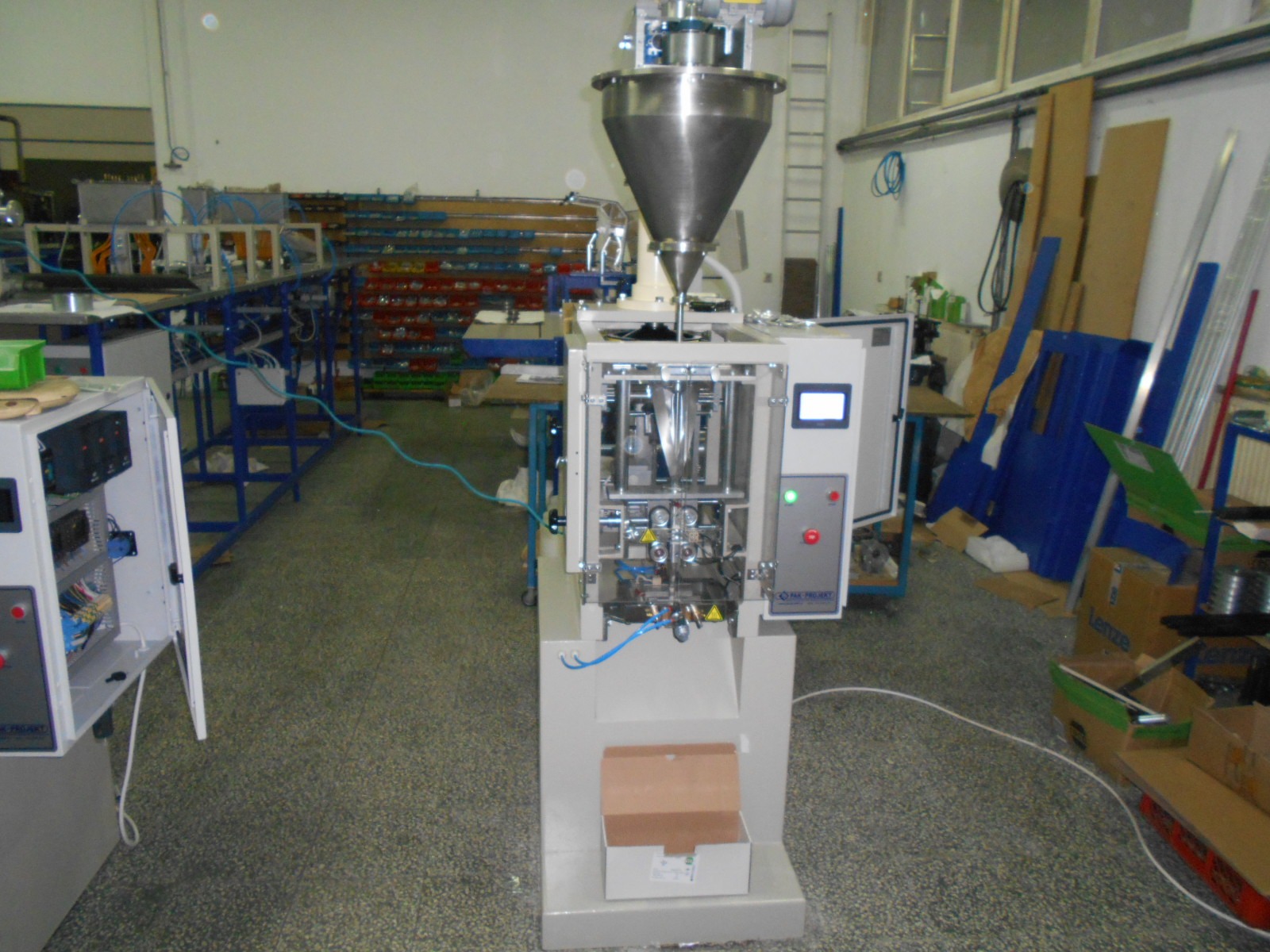

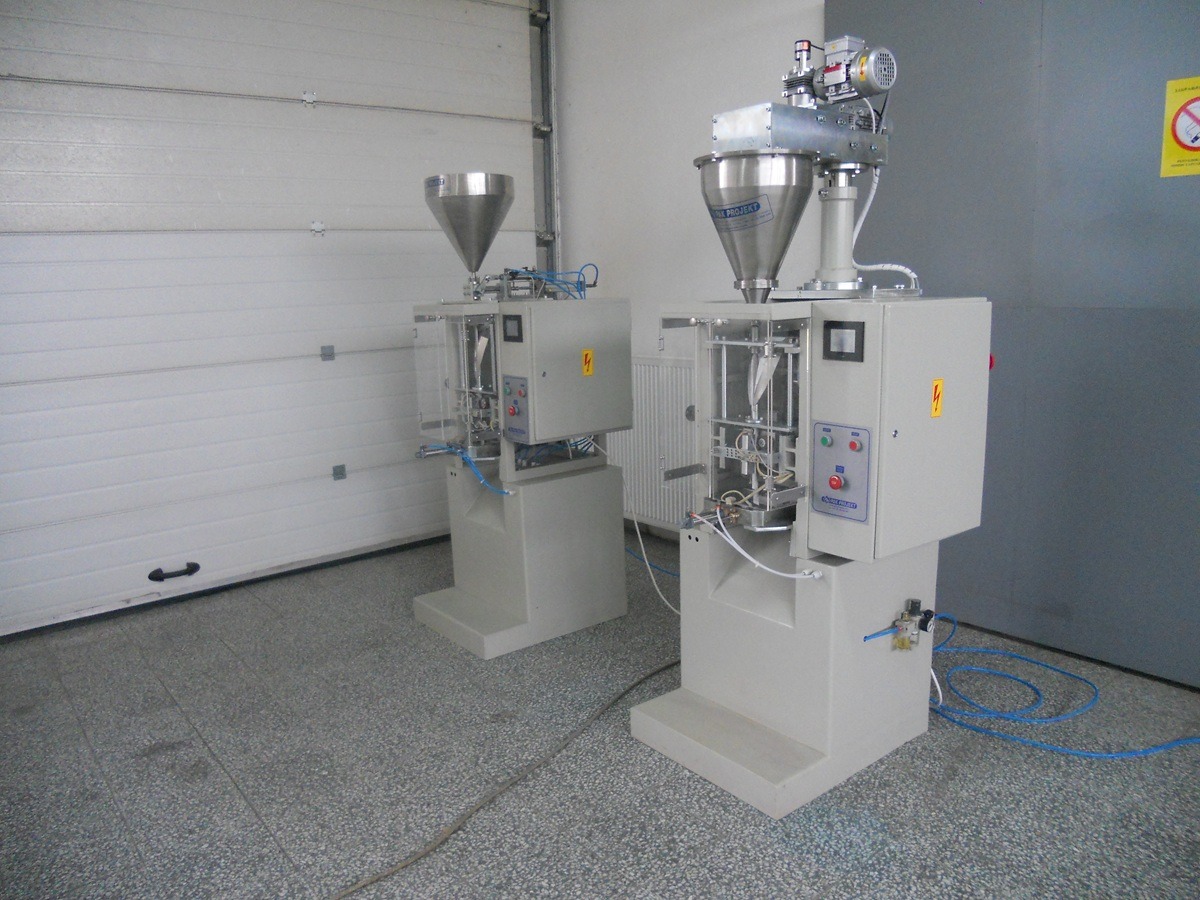

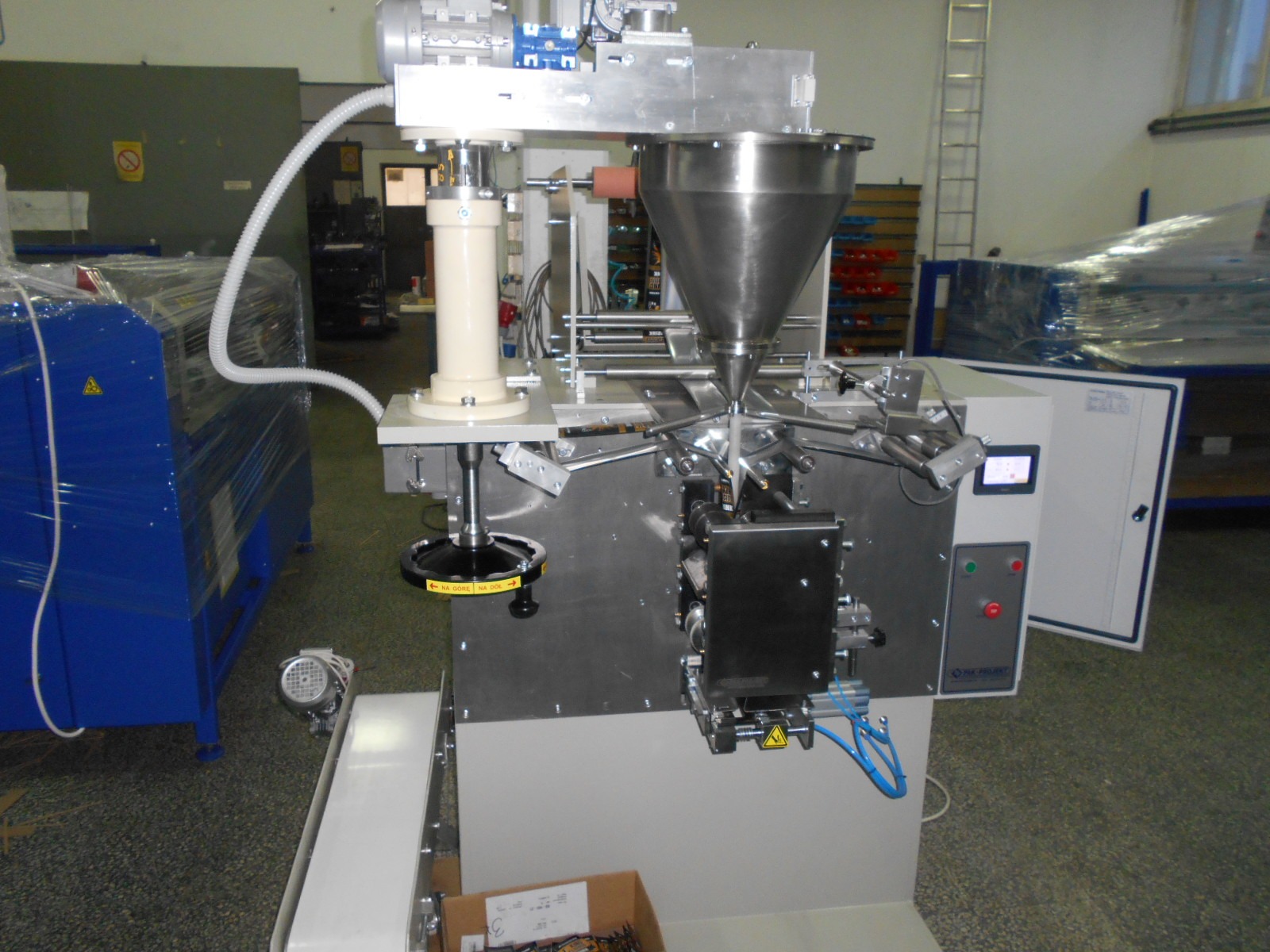

Machines for packing powder products
The machine works in automatic mode and is used for packing powder products (coffee, sugar, honey, etc.). The machine performs the pulling, bag forming, digesting, dosing and cutting operations. After that you get the packaged product.
Technical characteristics:
- type of foil: all types, except PE
- capacity: 20-30 bags/min.
- bag size: according to the customer's request
- shape of the bag: according to the customer's request
- voltage: 3x380 V
- installed power: ≈2 KW
- air pressure: 6 bar
- method of pulling the foil: with belts
- - dosing: with two vibro-dosers
- - measurement: electronic scales

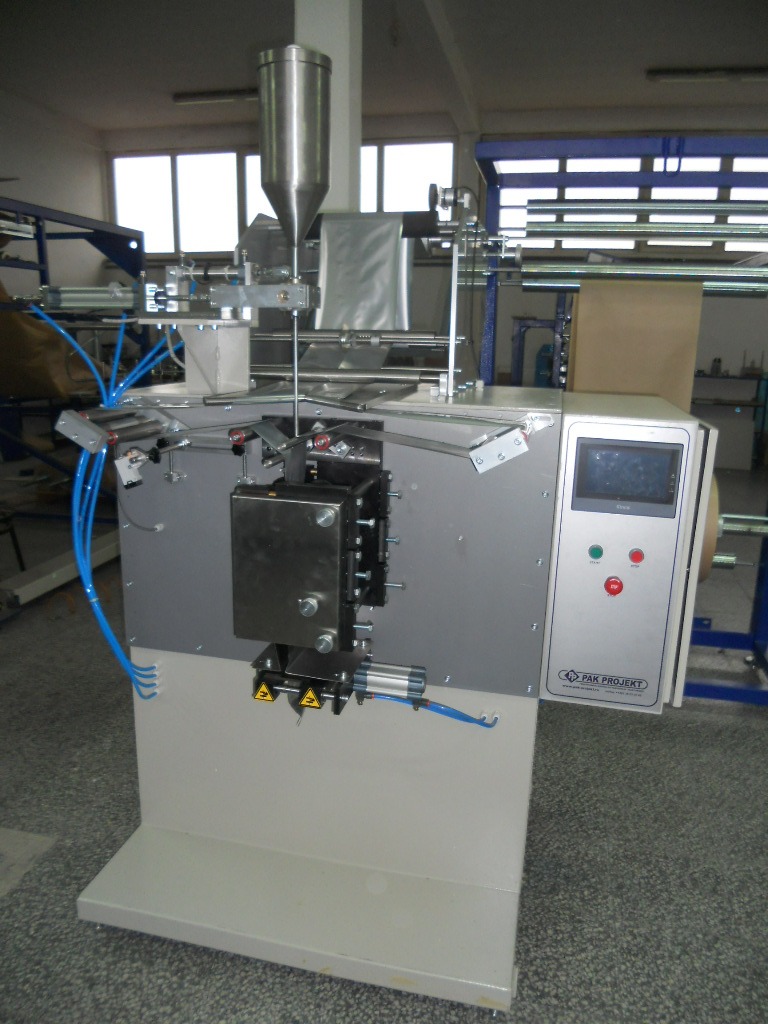

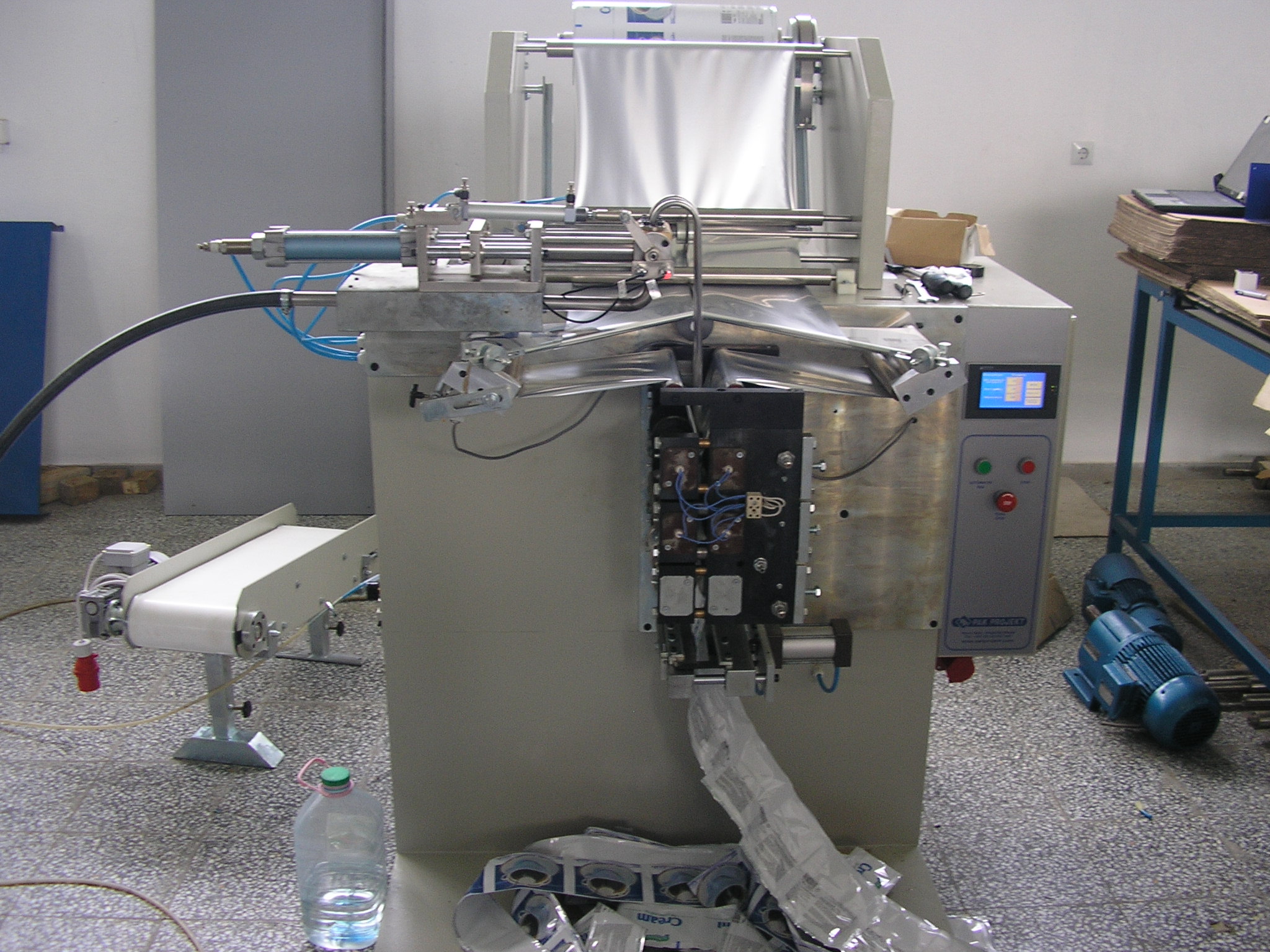

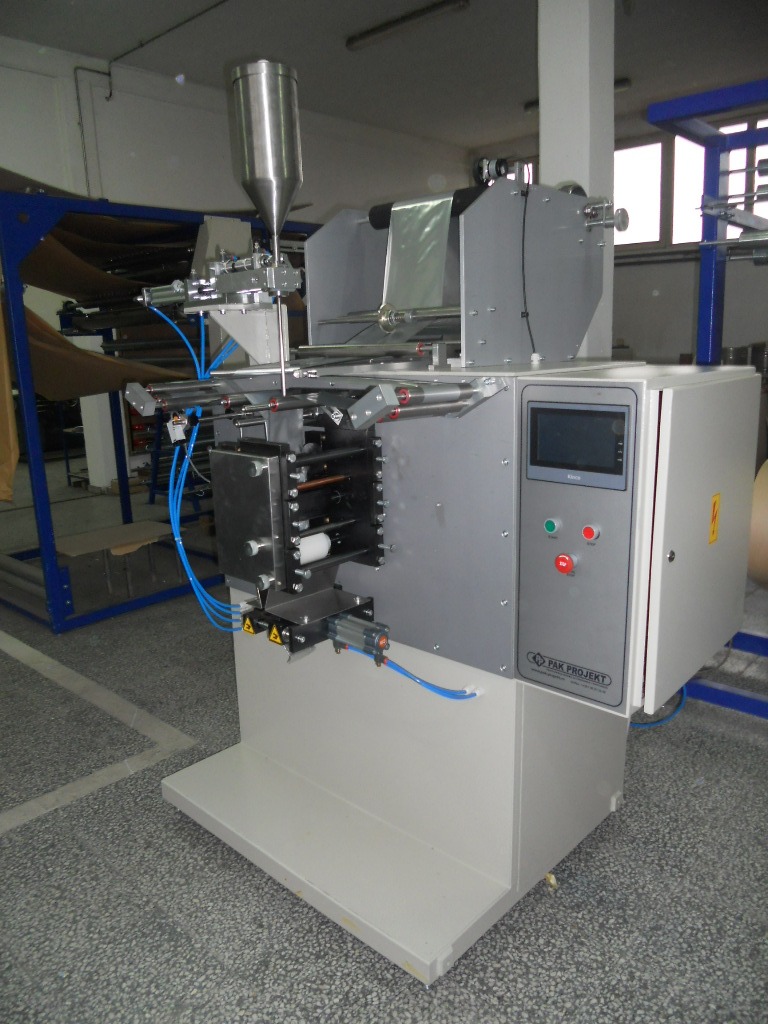

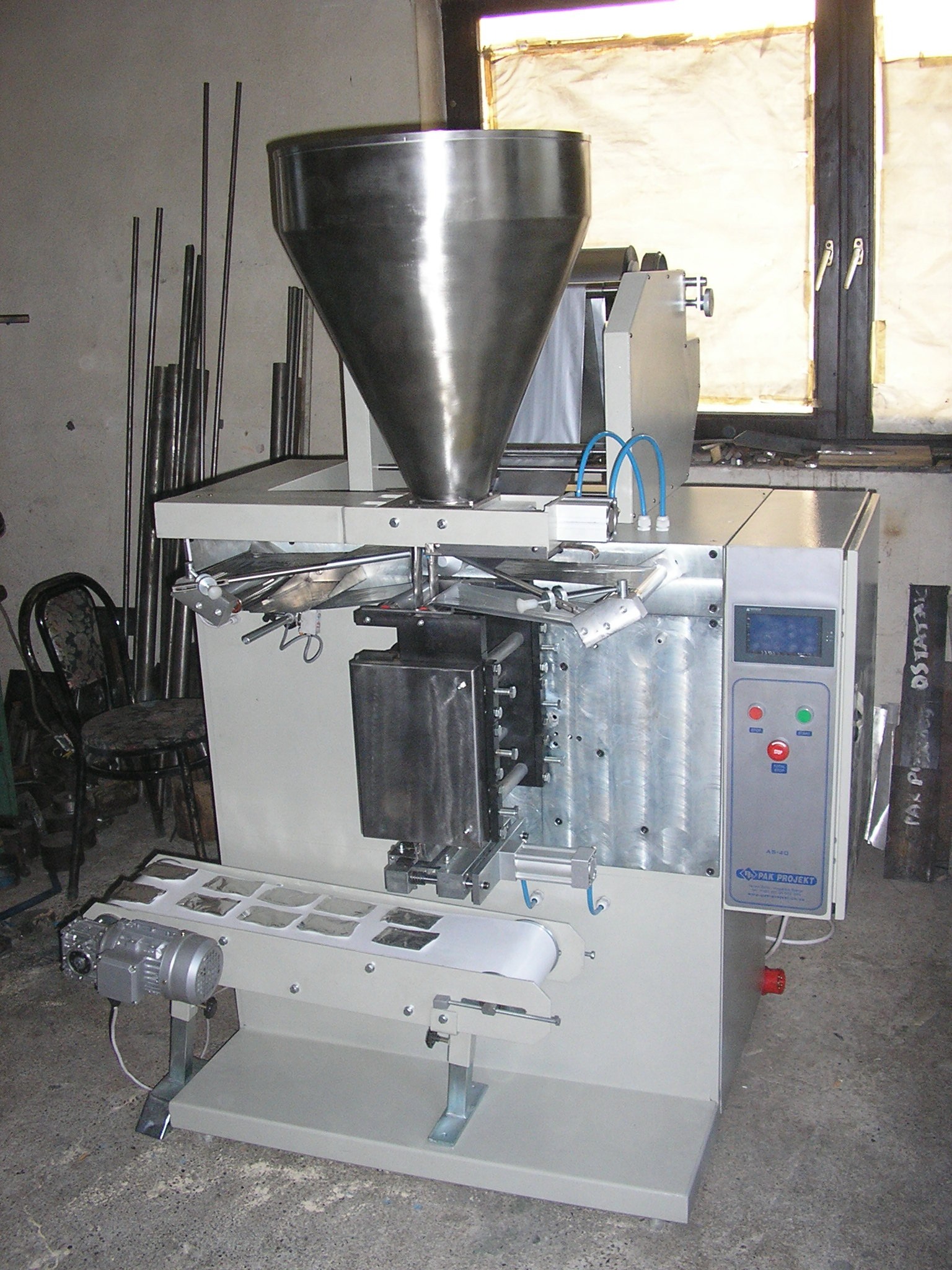

Liquid packaging machines
The machine is used for packing liquid materials. The machine performs the pulling, bag forming, digesting, dosing and cutting operations. After that you get the packaged product.

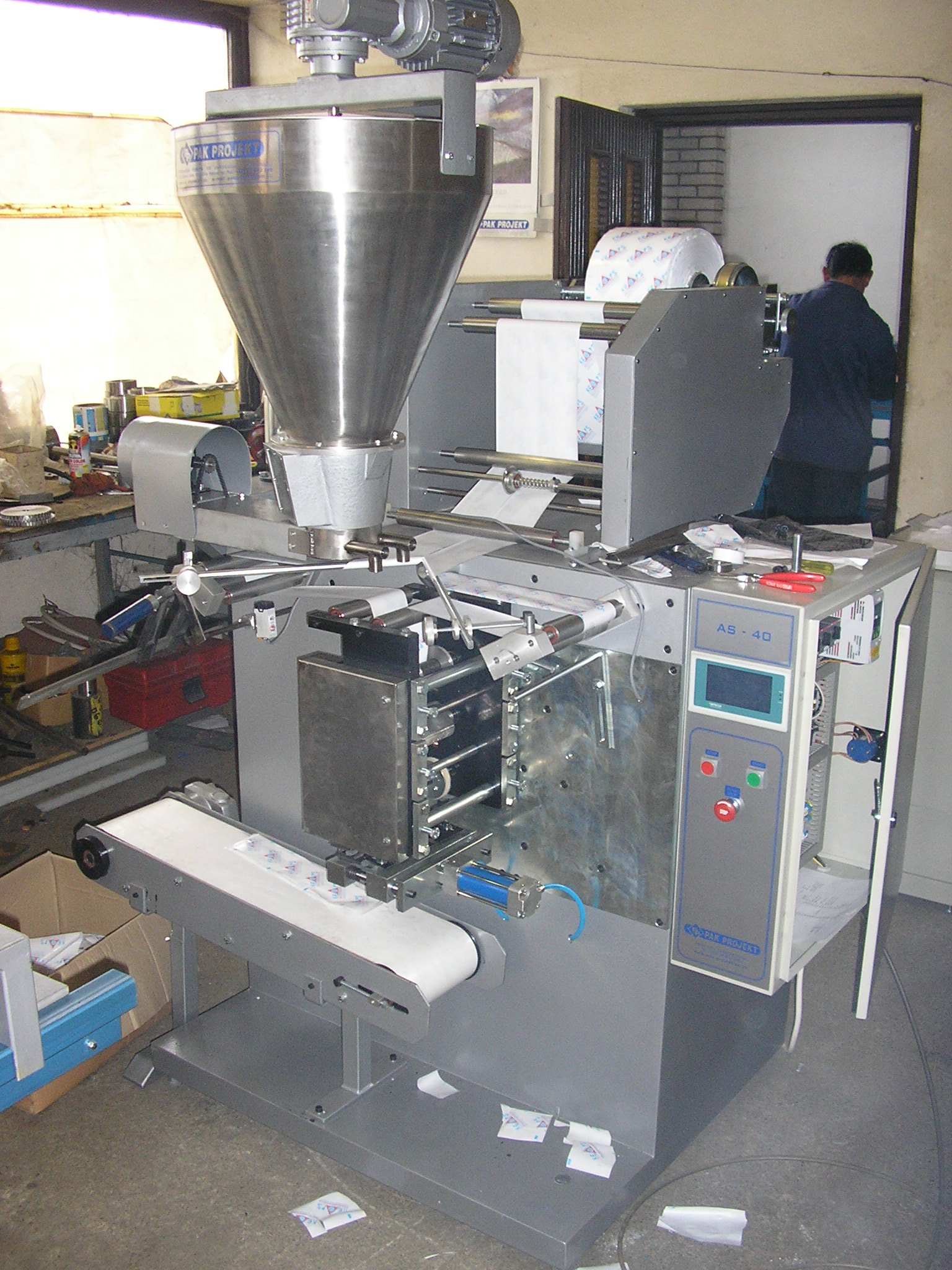

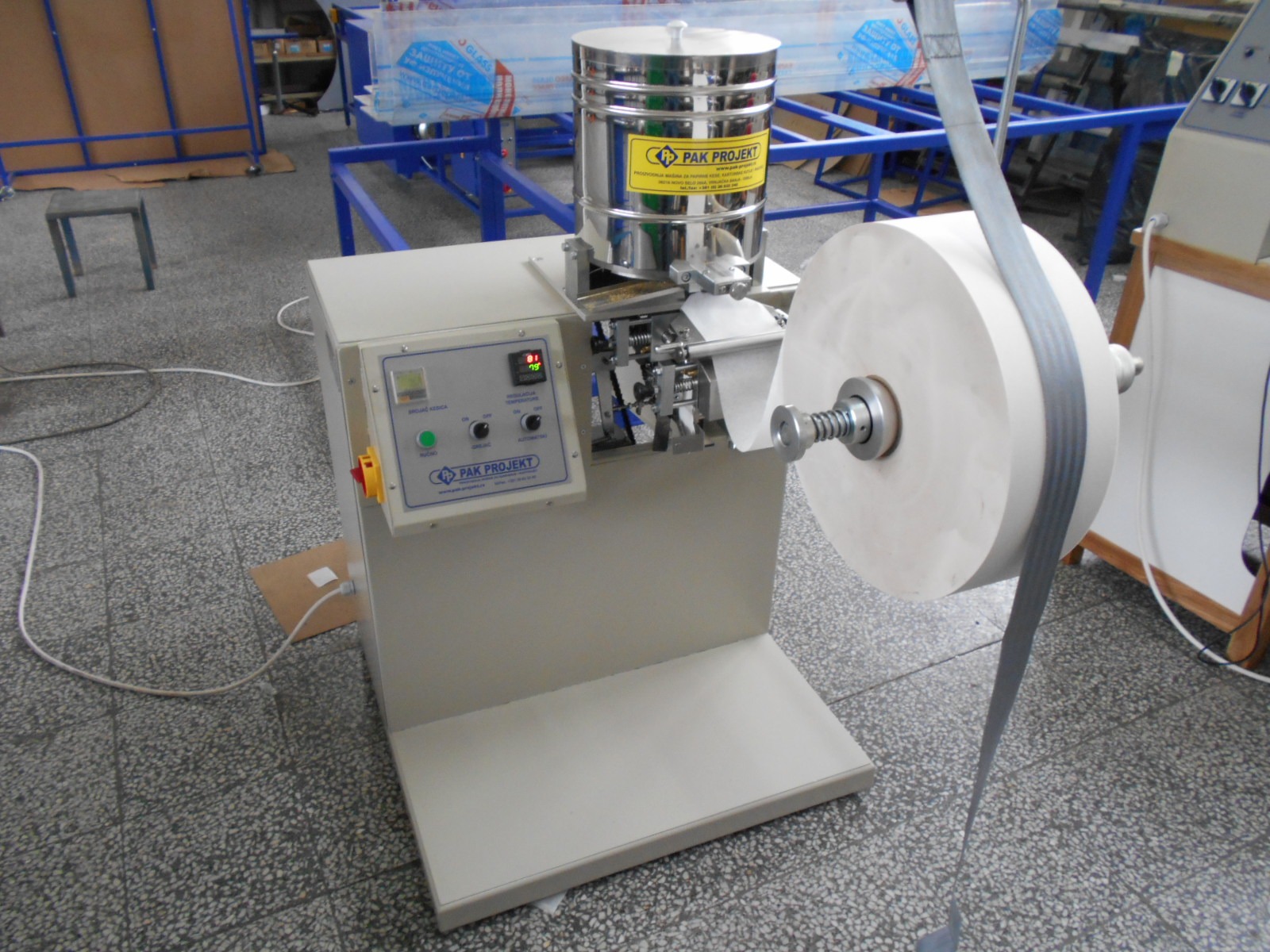

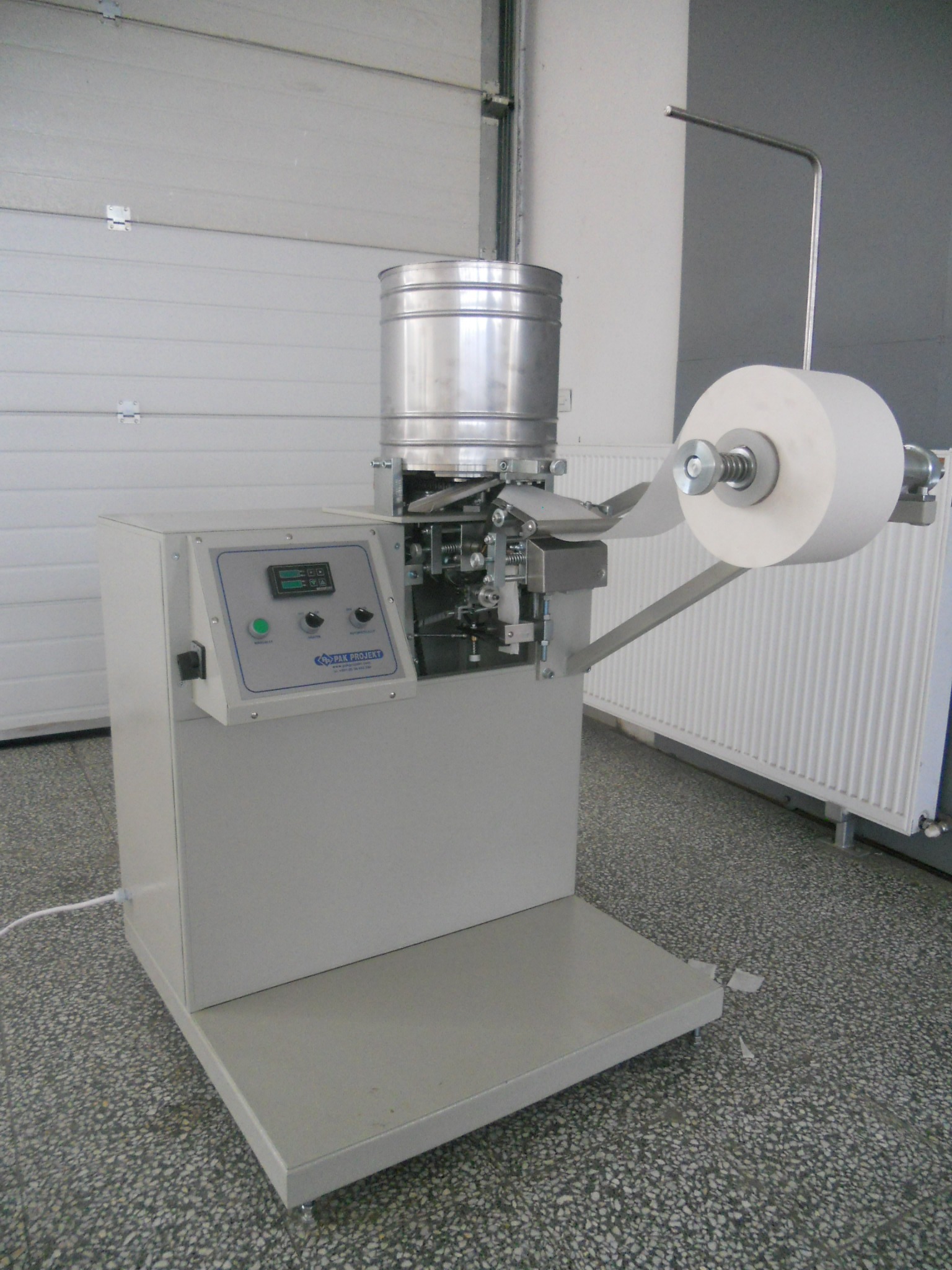

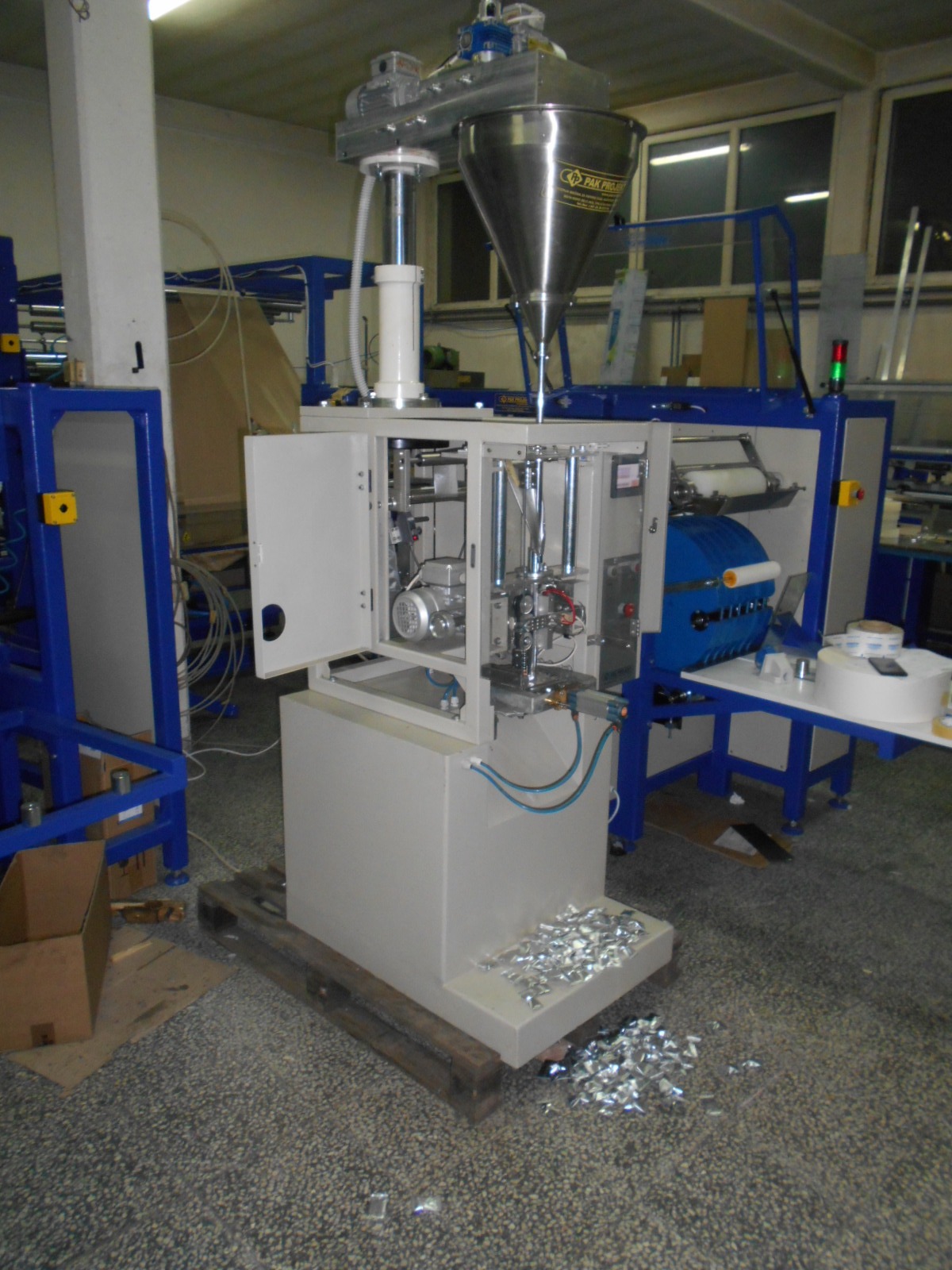

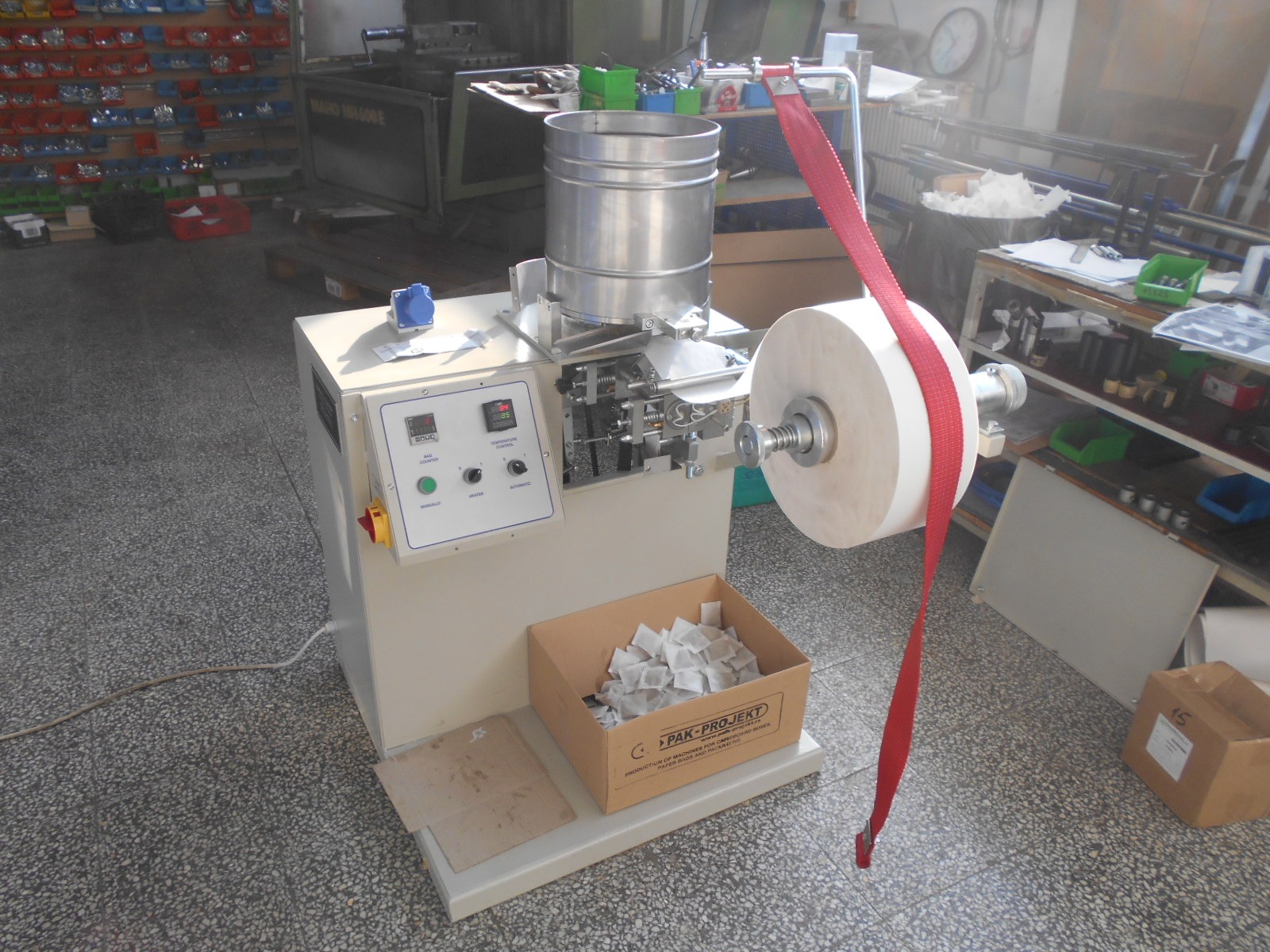

Tea bag packing machine

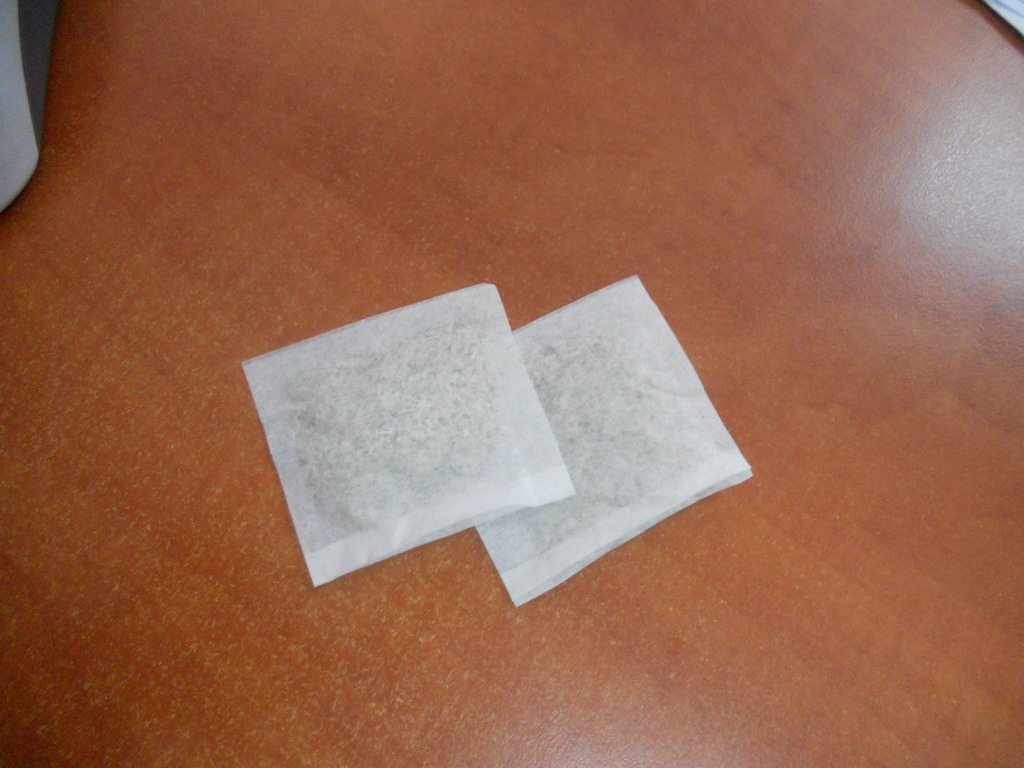

A foil filter is placed on the machine and introduced over the collar and the ground tea is poured into the basket. After that, the machine itself performs the process of forming the bag, welding, dosing and cutting so that after that you get a ready-made bag for use. The machine packs the tea into a filter bag without a tip. The size of the bag is 6cm x 5.5cm.
Technical characteristics:
- capacity: ~70-80 kes/min
- installed power: 900 W
- voltage: 3x380V
- dosage method: by volume (1-4 gr) depending on the type of tea
- foil: filter paper width 125mm
- bag size: 60mm x 55mm (with three seams, the fourth side is folded and has a fold)
- machine weight: ~150kg

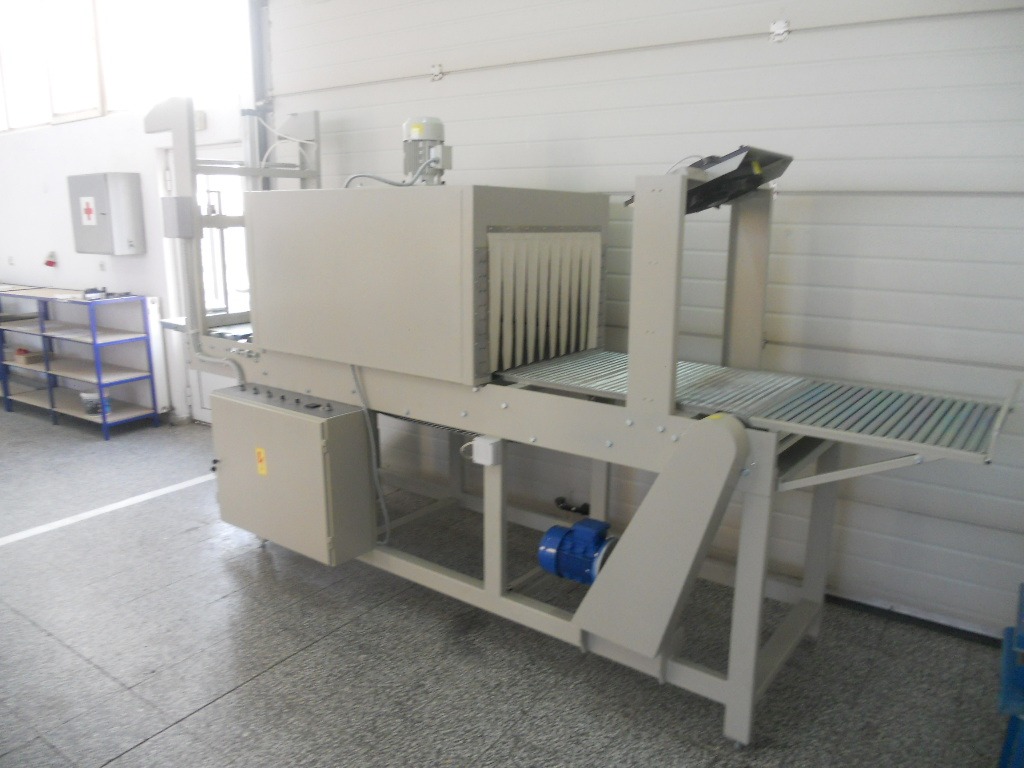

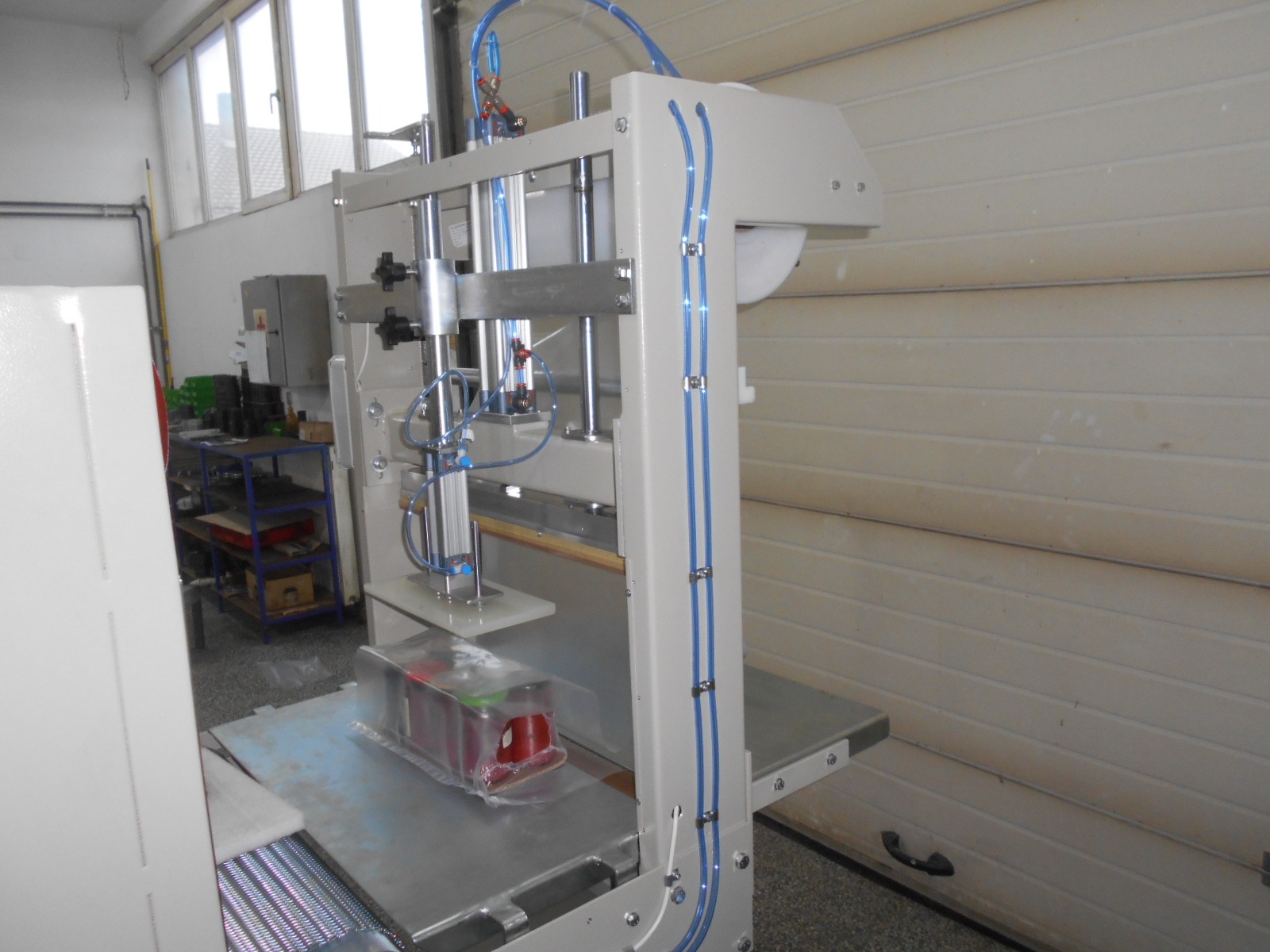

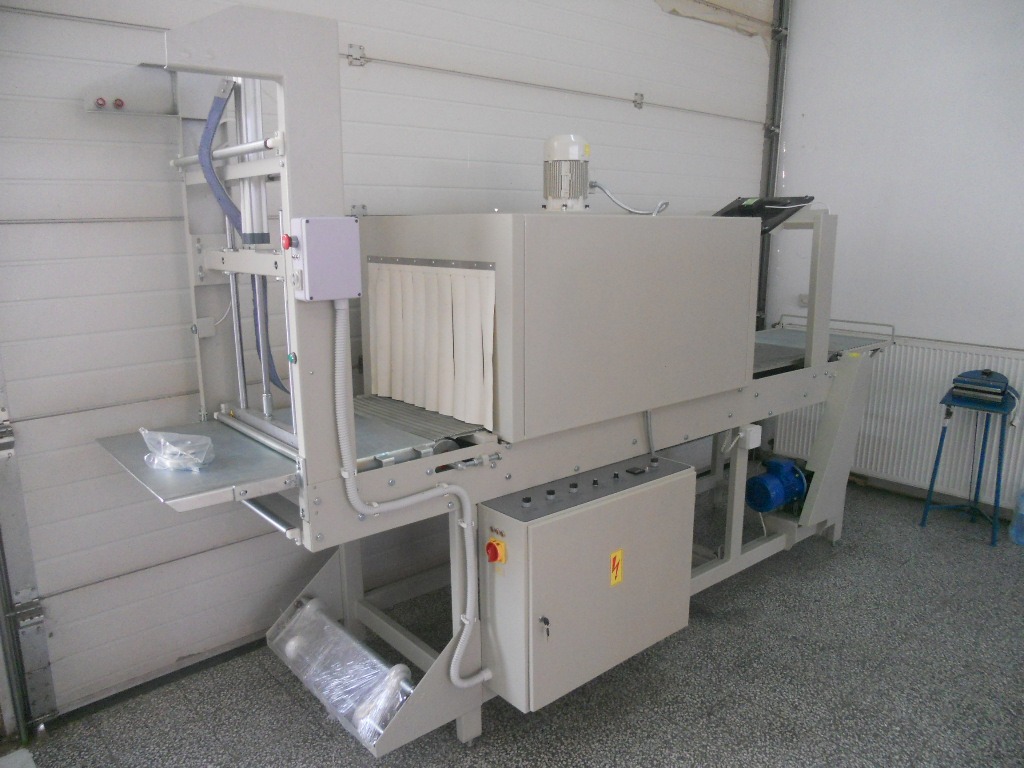

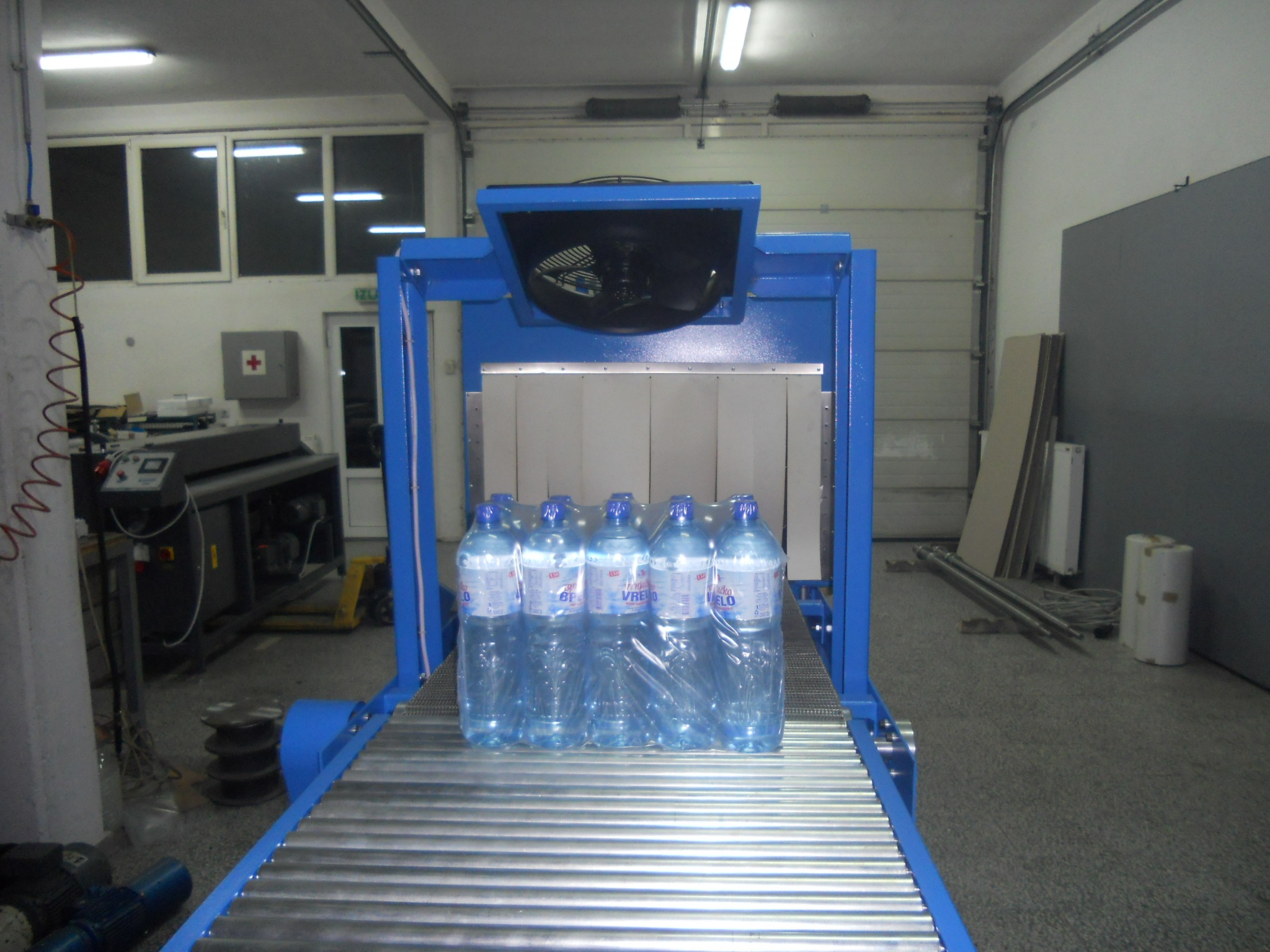

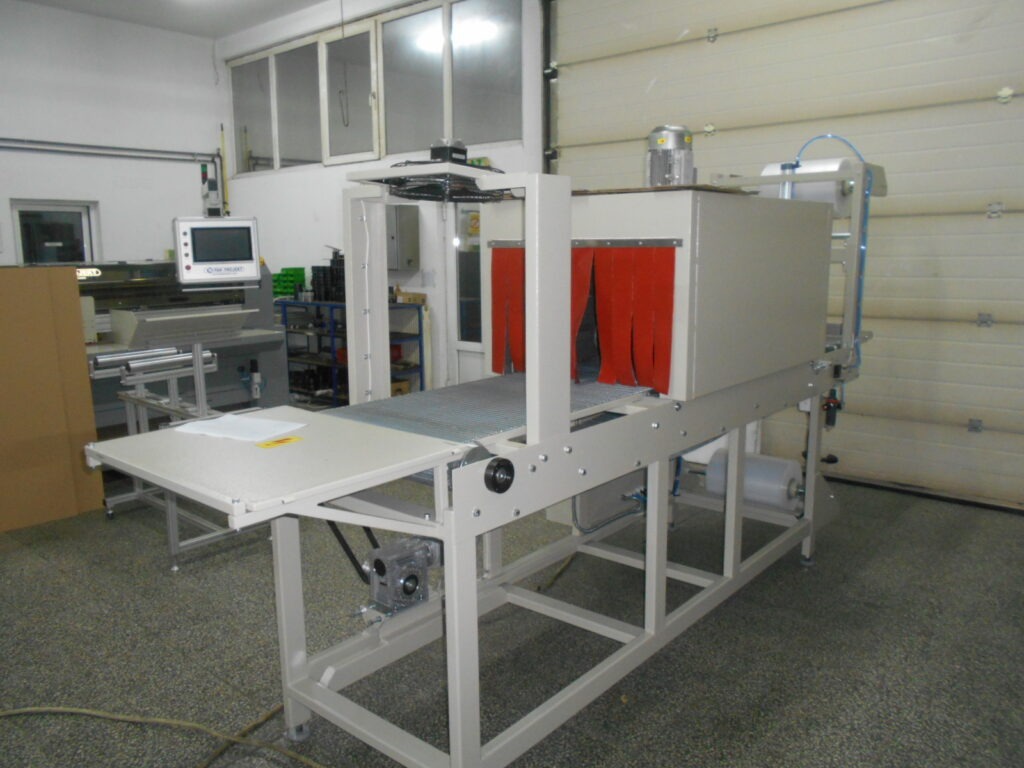

Shrink tunnel machine
The package is automatic placed on the machine, wrapped with heat-shrinkable foil, and the foil is sealed. After that, the conveyor belt carries the package into the tunnel. The foil is heated in the tunnel and the foil is shaped with the blowing system so that the package is completely closed on 4 sides and partially closed on the two opposite sides, enough to hold the package. The package exits the tunnel onto a fan that cools the foil.
Technical characteristics:
- capacity: 8-10 packages/min
- mains voltage: 3x380V, 50Hz
- installed power: ≈20 KW
- foil: heat-shrinkable polyethylene
- temperature: 180-200 °C
- welder: 2 welding + 1 cutting
- machine type: automatic or semiautomatic

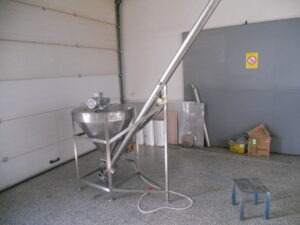

Conveyors
At the customer’s request, we produce all types of conveyor belts for transporting all types of products.
